Setting the Team Number for the VEX Brain in VS Code

The VEX VS Code Extension enables us to set the team number for the VEX Brain, making it easier to identify which team the VEX Brain is associated with.

How to set a team number for the VEX Brain in VS Code

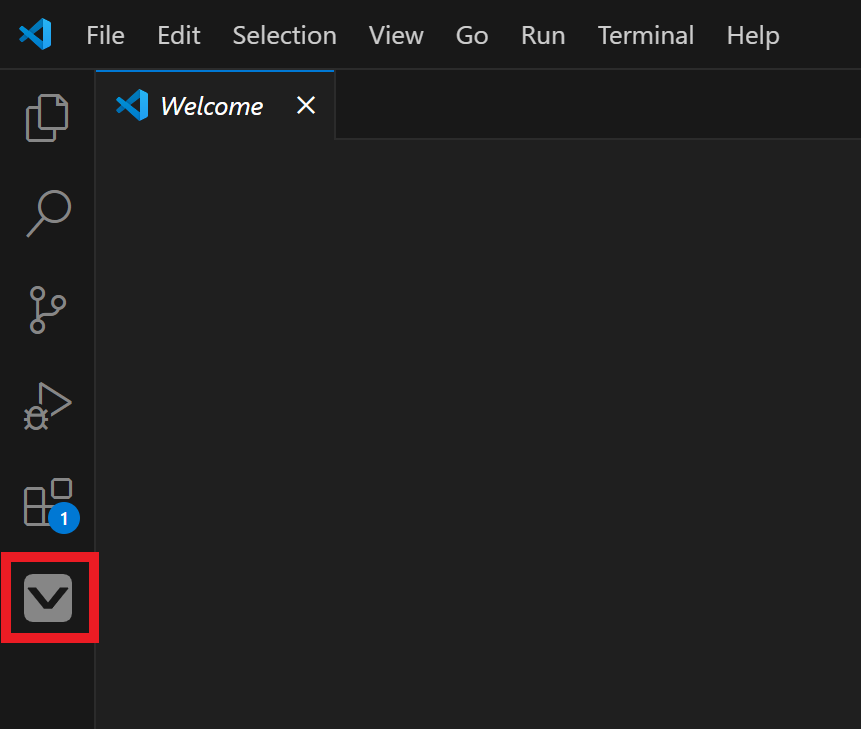

  • Connect the Vex Brain to the VEX VS Code Extension. Click on the VEX icon on the VS Activity Bar.

    Diagram illustrating the features and functionalities of the V5 VS Code Extension, highlighting its integration and usage within the VEX Robotics ecosystem.

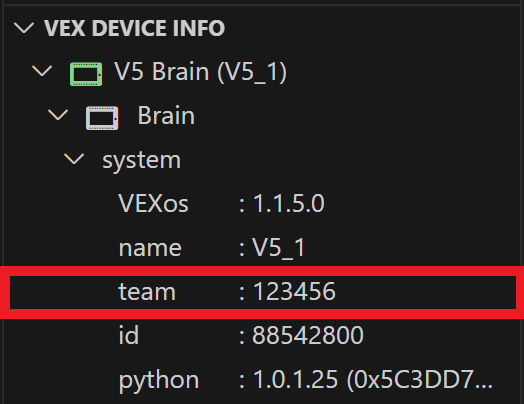

  • The VEX view will open in the Side Bar. Hover the mouse over the team item listed under the system subcategory within the VEX DEVICE INFO category in the VEX view.

    Diagram illustrating the features and functionalities of the V5 VS Code Extension, showcasing its integration with VEX robotics programming tools and user interface elements.

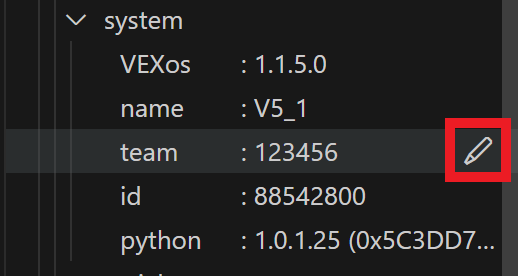

  • The Pencil icon will appear next to the team item. Click on the Pencil Icon.

    Screenshot of the VEX V5 Code Extension interface in Visual Studio Code, showcasing features and tools available for programming VEX robotics.

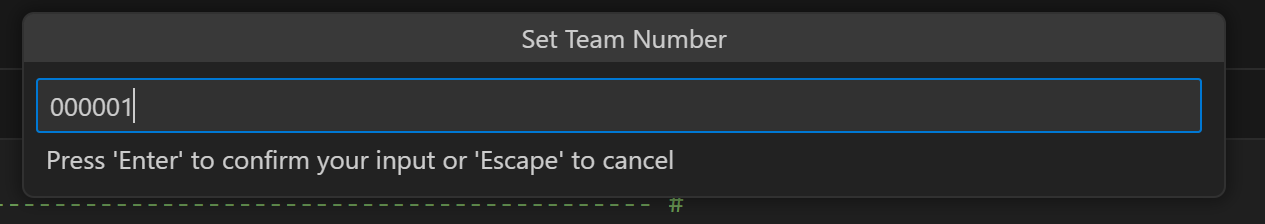

  • The Set Team Number window will prompt. Type a new Team Number for the VEX Brain in the Text Box and press the Enter key.

    Diagram illustrating the features and functionalities of the VEX V5 VS Code Extension, including code editing, debugging tools, and project management options for robotics programming.
  • The new Team Number will be set for the VEX Brain.

    Screenshot of the VEX V5 VS Code Extension interface, showcasing features and tools available for programming VEX robotics, including code editing and debugging options.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
