The Event Log on the Vex Brain can be used to help troubleshoot issues by providing valuable diagnostics information. The Event Log includes information such as project execution, project download, or project stop actions. It also records hardware events such as the VEX Controller losing link to the VEX Brain, a Smart Device being disconnected, and any battery notifications.
How to upload the VEX Brain Event Log in VS Code

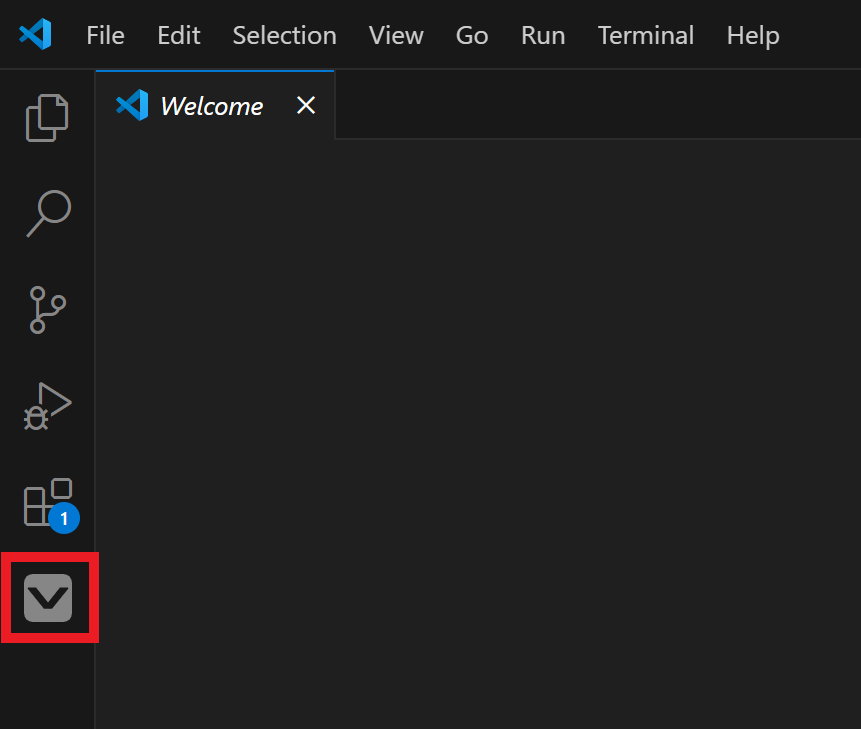

- Connect the Vex Brain to the VEX VS Code Extension. Click on the VEX icon on the Activity Bar.

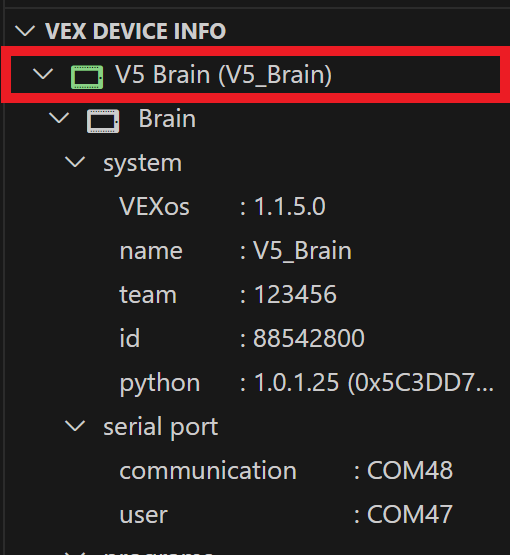

- The VEX view will open in the Side Bar. Hover the mouse over the VEX Brain Icon or the VEX Brain text under VEX DEVICE INFO in the VEX view.

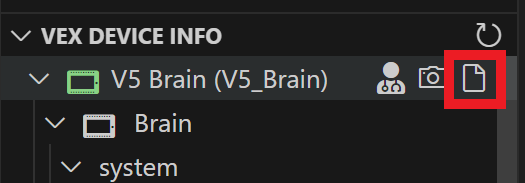

- The icons will appear next to the VEX Brain text. Click on the Event Log Icon.

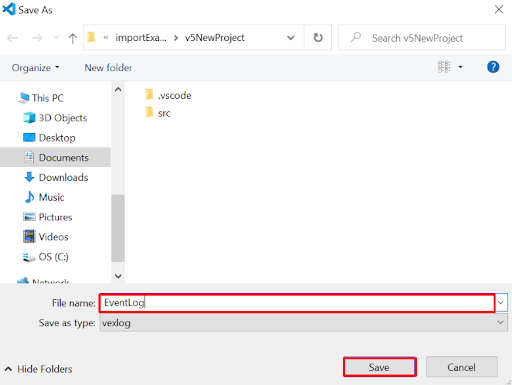

- The Save As window will prompt. Type a name for the Event Log file in the File name Text Box and click on the Save Button.

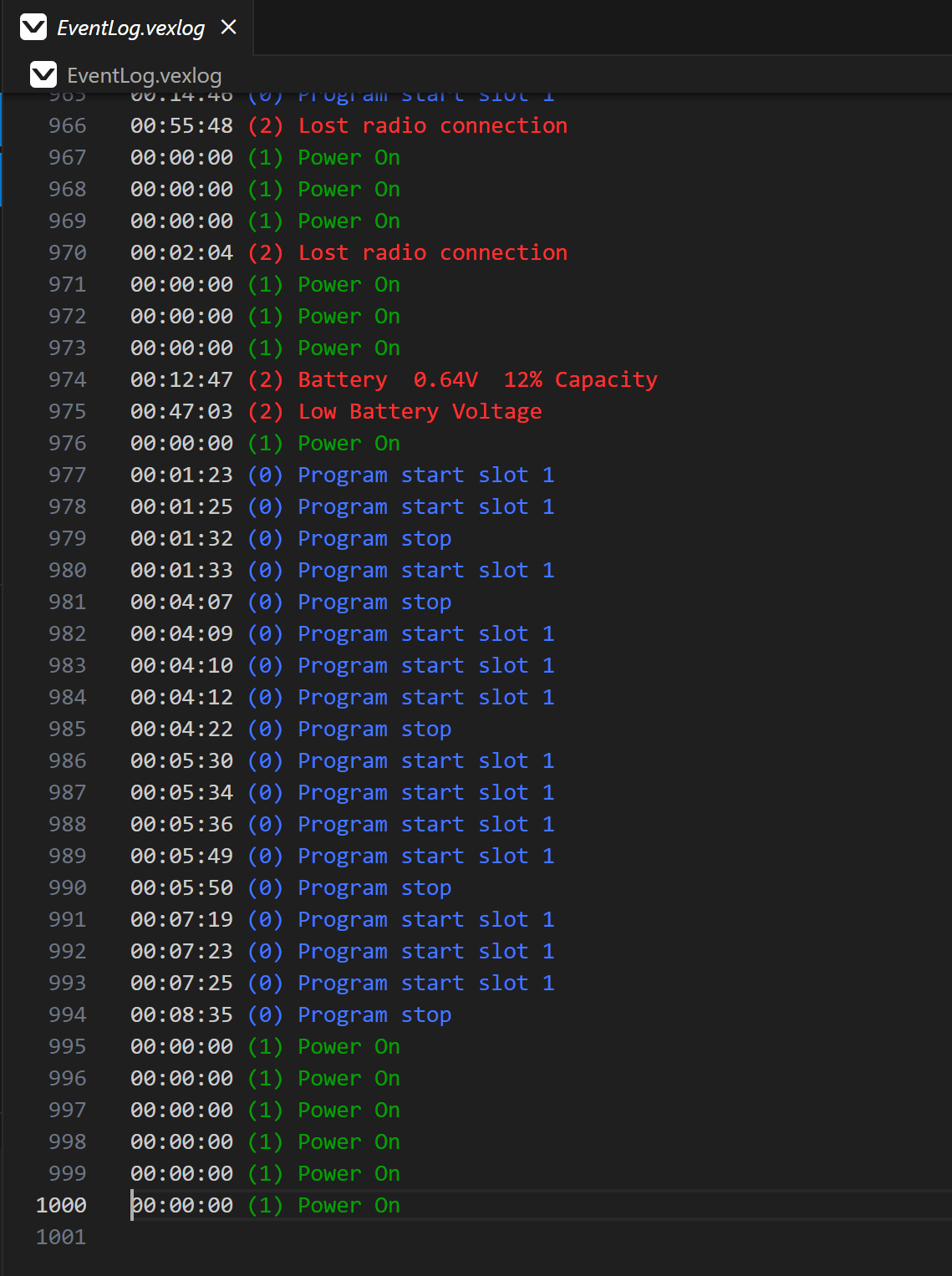

- The Event Log file will be saved on the computer and will be opened in the Editor area of the VS Code.
