The Field in the VIQC Slapshot Playground in VEXcode VR has the same dimensions and setup as the Field for an in-person Skills Match in the 2022-2023 VIQC Slapshot Competition game. This information can be useful when creating projects in VIQC Slapshot for VEXcode VR.

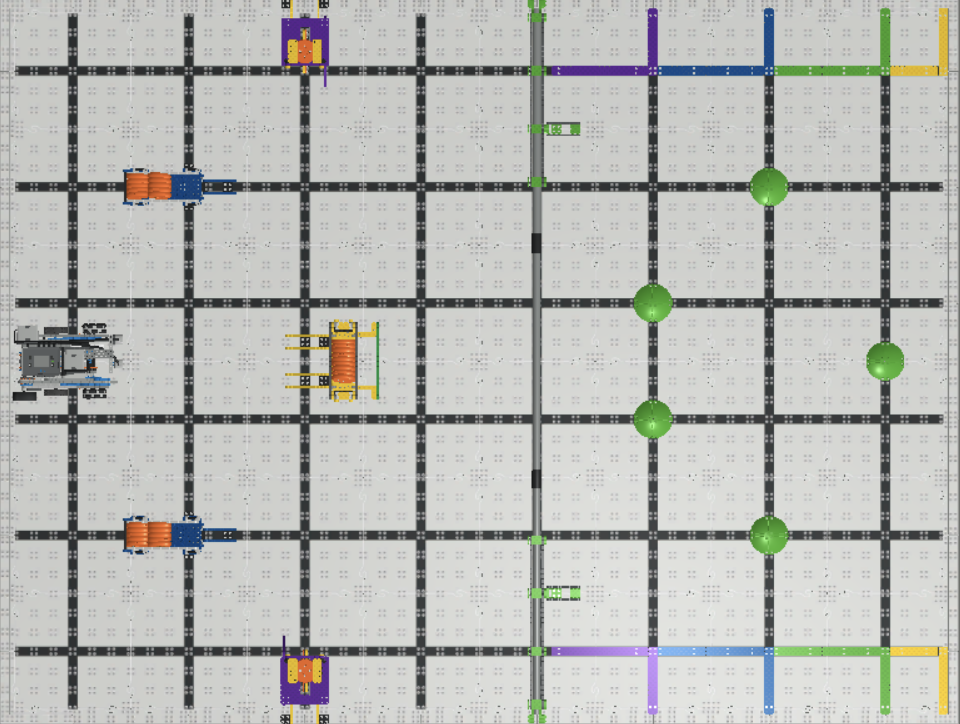

VIQRC Slapshot field diagram showing starting positions, goals, and match elements

Field Dimensions

VIQRC Slapshot field diagram labeling starting positions, goals, and match elements

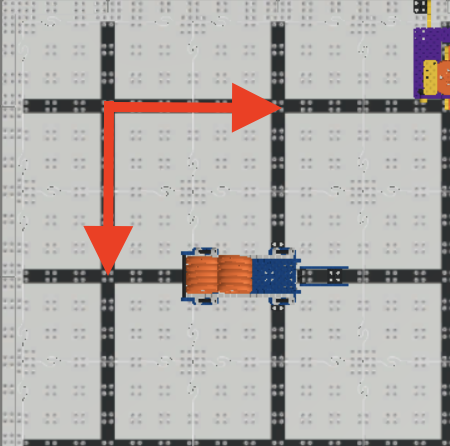

Each full black square on the Field is 300mm by 300mm (~12 inches by 12 inches).

Labeled VIQRC Slapshot field showing robot starting positions, goals, barriers, and game elements

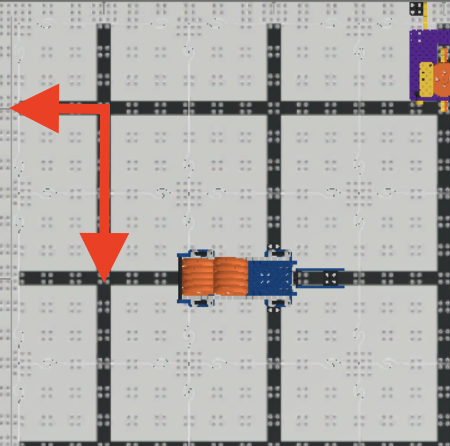

Each half black square on the Field is 150mm by 300mm (~6 inches by 12 inches).

VIQRC Slapshot field diagram showing starting positions, goals, and game elements

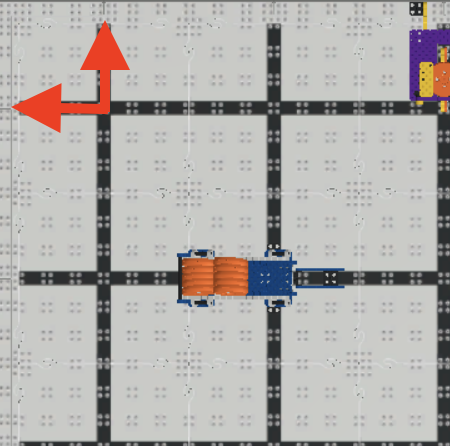

Each corner on the Field is 150mm by 150mm (~6 inches by 6 inches).

Labeled VIQRC Slapshot field diagram showing starting positions, goals, barriers, and match elements

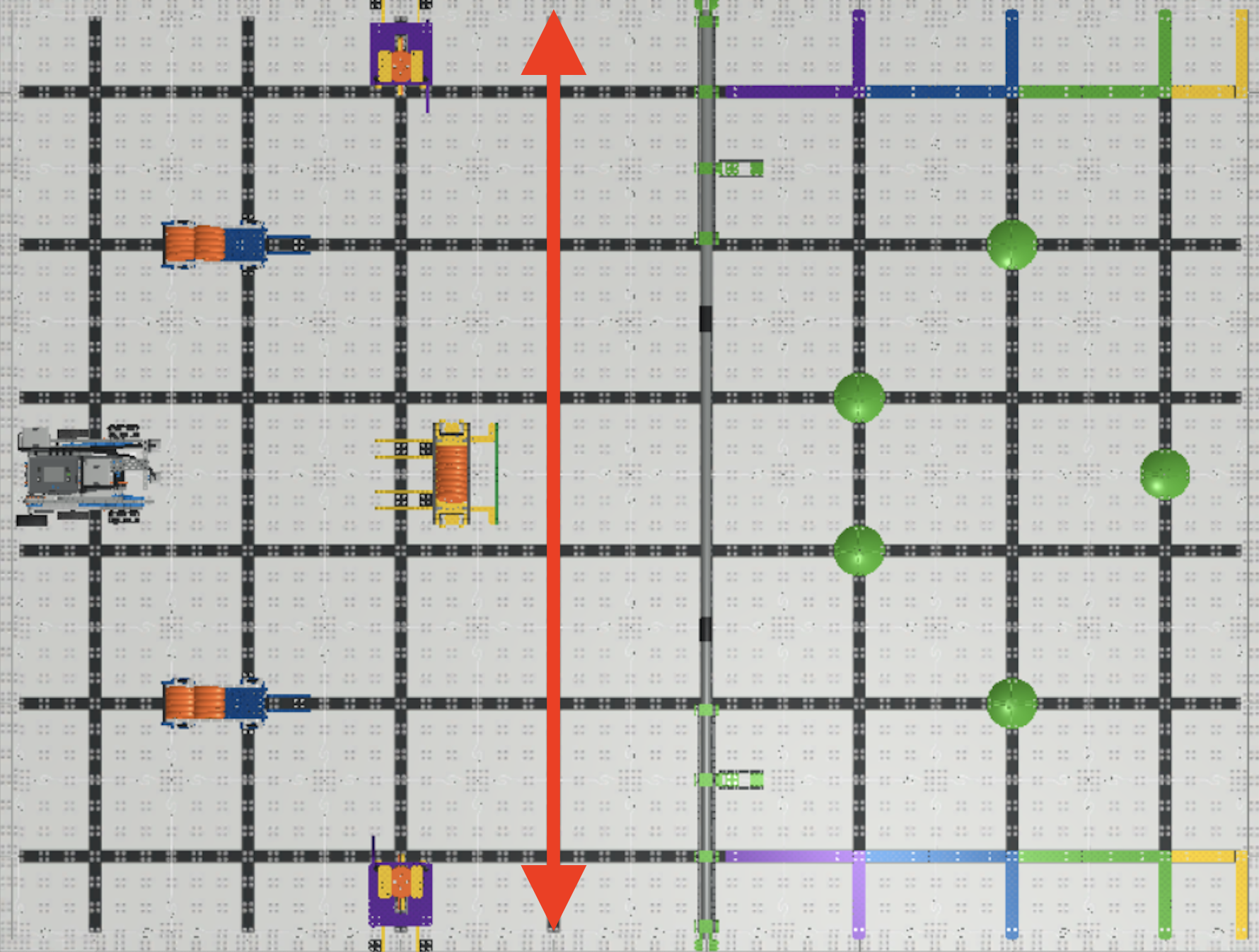

The Field is 5 full black squares, and two half-squares long.

In total, the Field is 1.8m (~6 feet) long.

Labeled VIQRC Slapshot field diagram showing starting positions, goals, and game elements

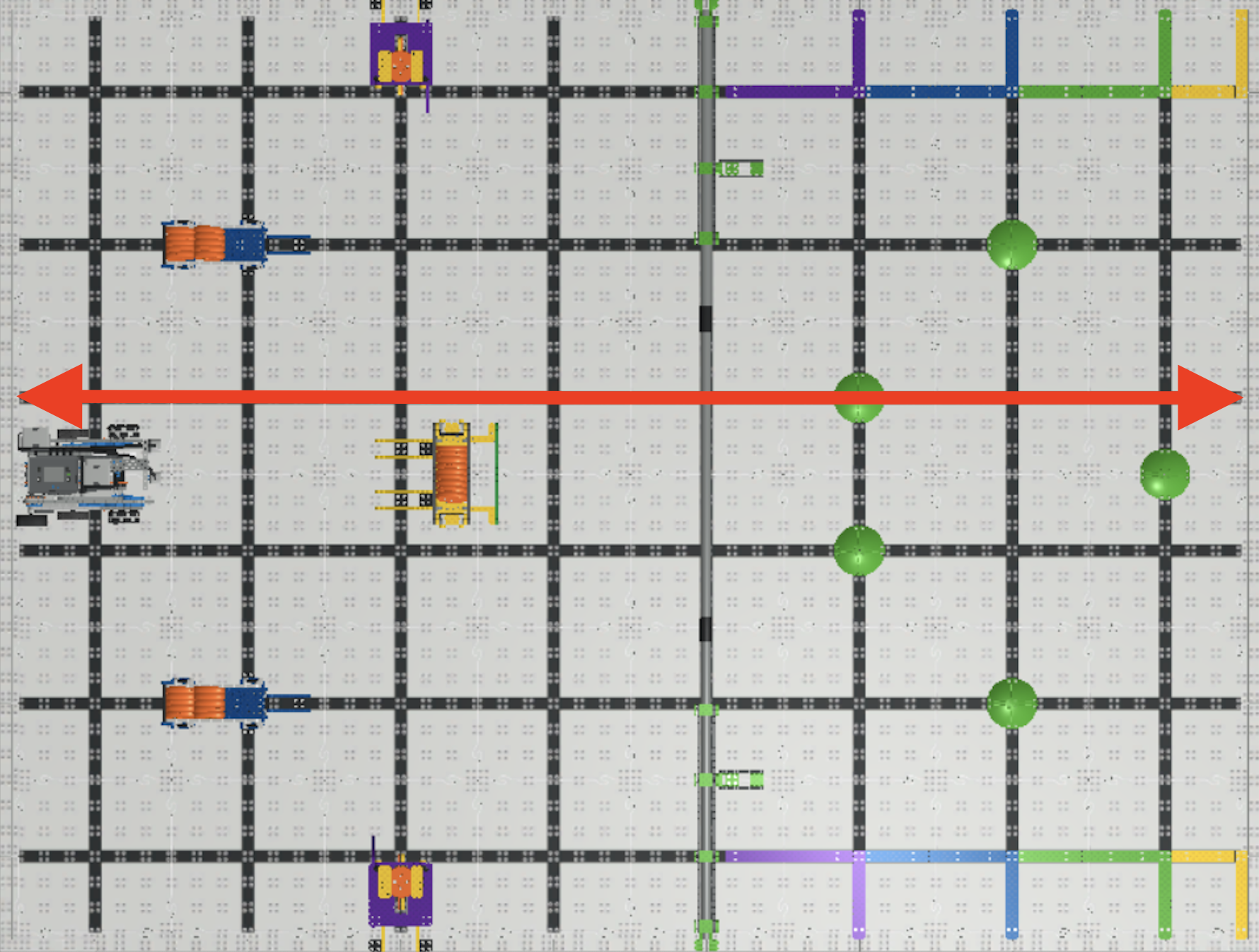

The Field is 7 full black squares, and two half-squares wide.

In total, the Field is 2.4m (~8 feet) wide.

Measurement Notes

Labeled VIQRC Slapshot field showing starting positions, goals, barriers, and game elements

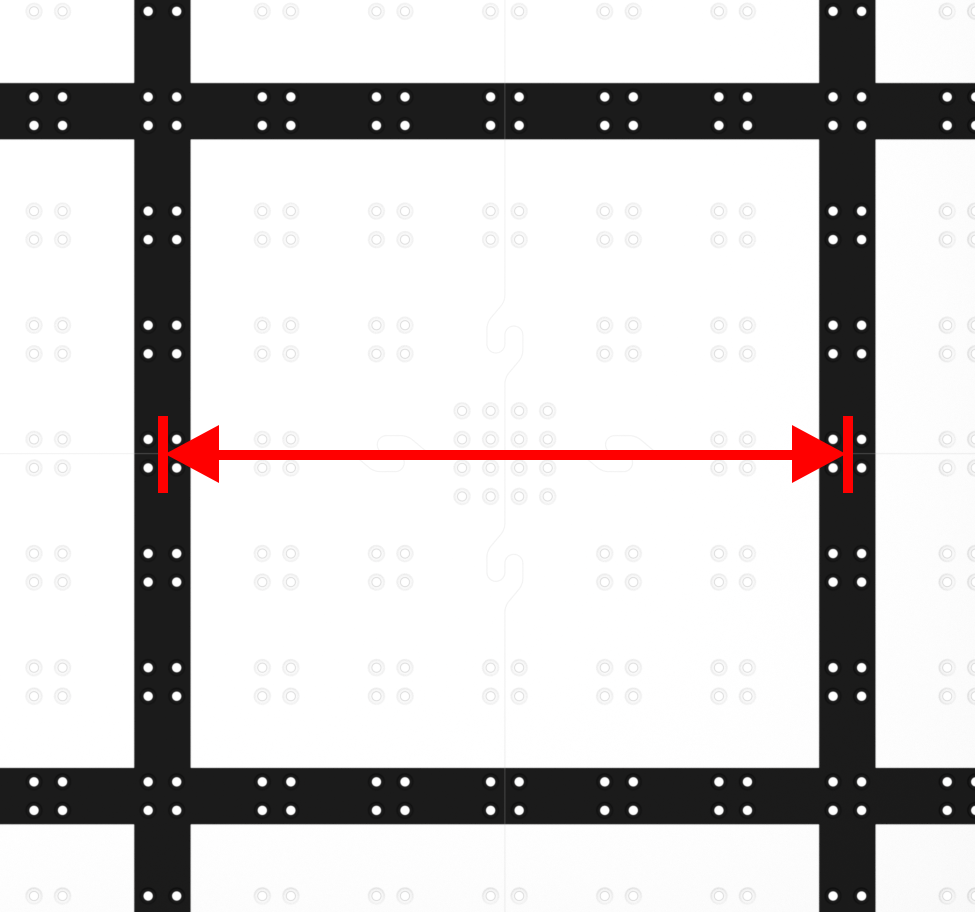

Each full square measurement begins and ends at the center of the black line on the Tile.

Labeled Slapshot field diagram showing robot starting positions, goals, barriers, and match objects

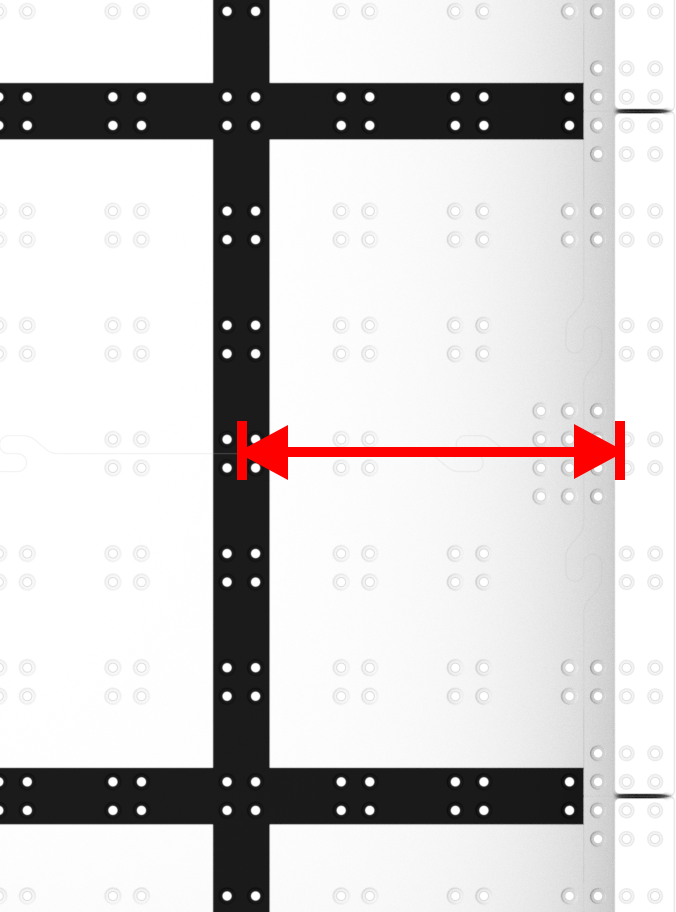

Each partial square measurement begins at the center of the black line and ends at the inner edge of the wall.

Labeled Slapshot field diagram showing robot starting positions, goals, and match elements

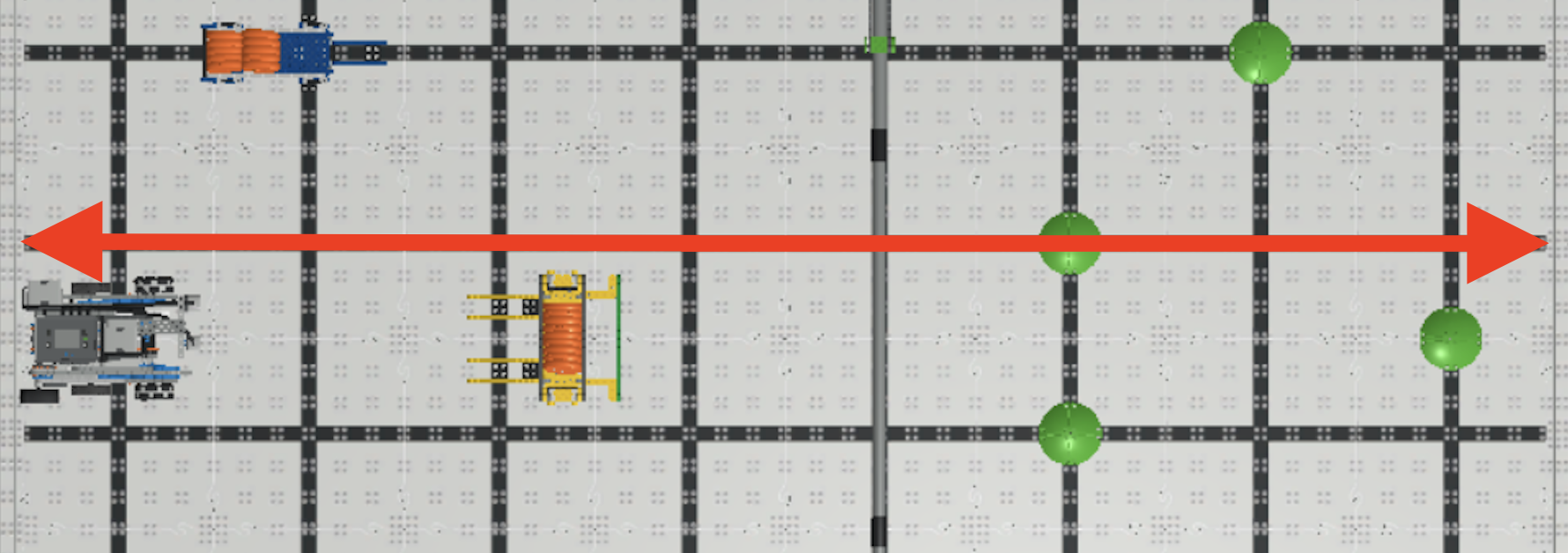

The total Field measurements begin and end at the inner edge of the walls.
