Using the VIQRC Full Volume Playground Window

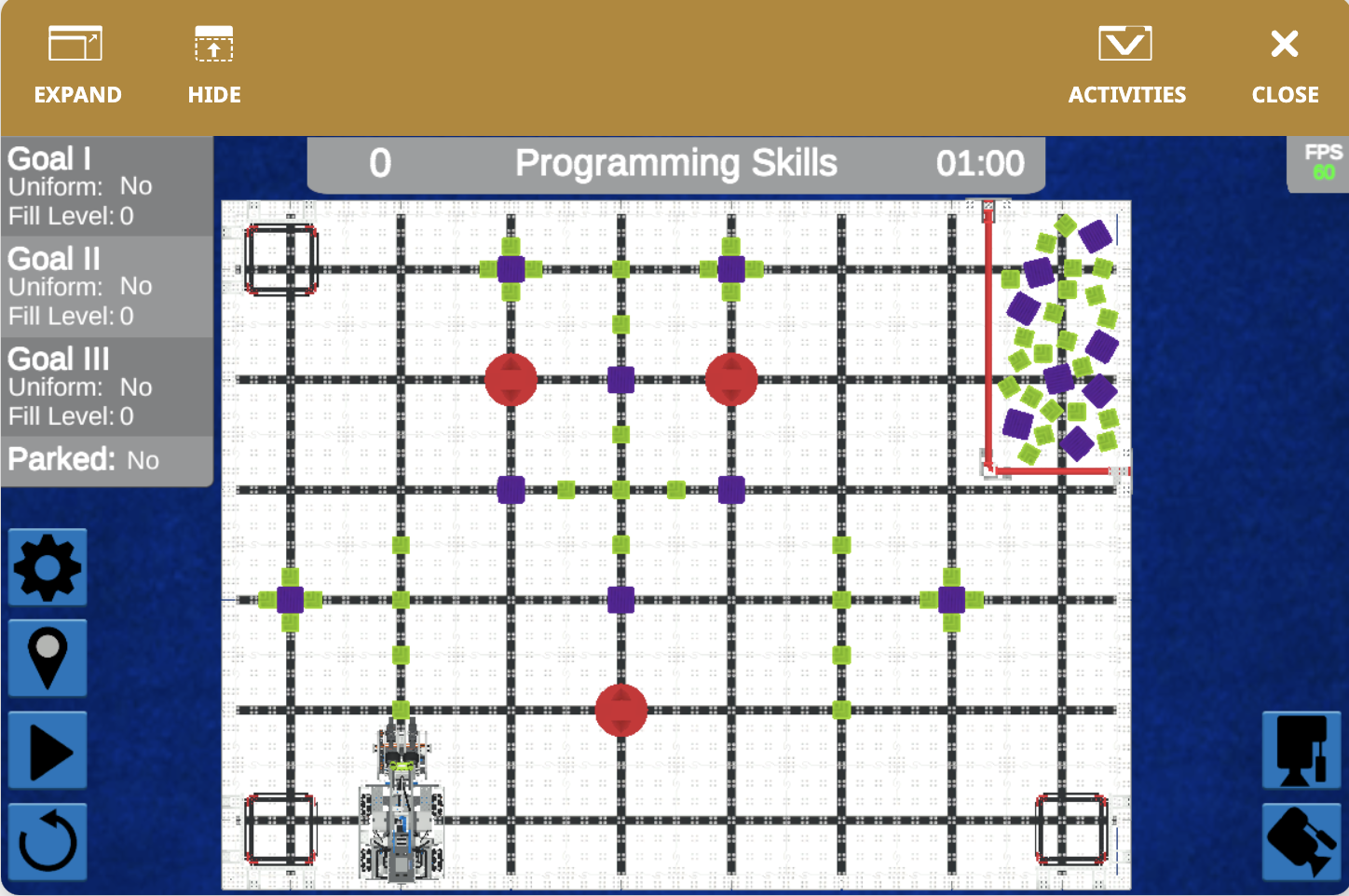

The VIQRC Full Volume Playground is a virtual representation of the Field for the VIQRC Full Volume (2023-2024) Competition game. The VIQRC Full Volume Playground Window is a space for the Hero Bot, Byte, to interact and move to play VIQRC Full Volume Virtual Skills.

Screenshot of the VEXcode VR interface displaying the VIQC Full Volume (2023-2024) programming environment, showcasing block-based coding options for users to learn coding concepts through a virtual robot simulation.




How to Choose Your Starting Position

Screenshot of VEXcode VR interface displaying the VIQC Full Volume (2023-2024) programming environment, showcasing block-based coding options for users to learn coding concepts and robotics principles in a virtual setting.

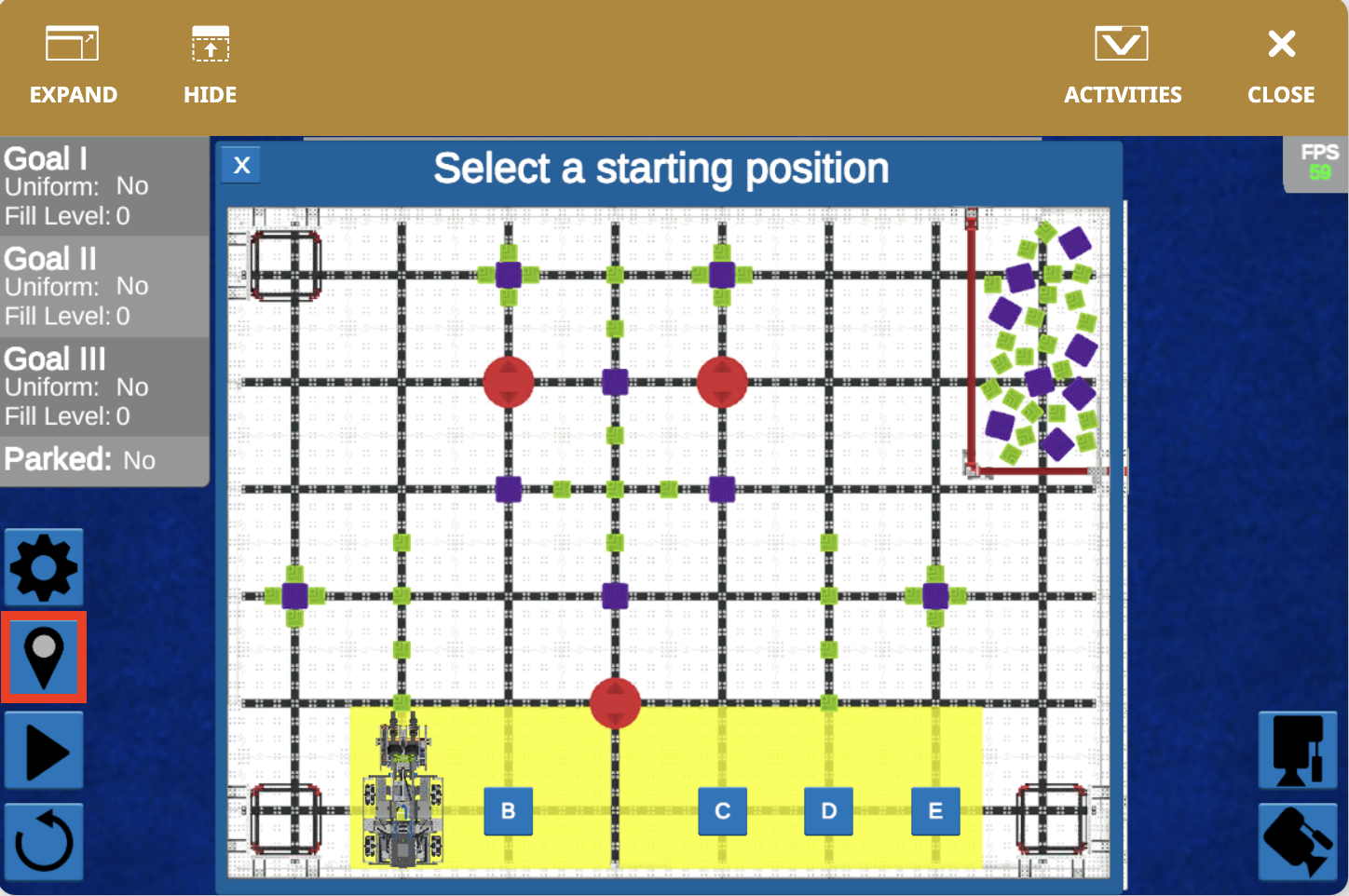

The default starting position is at the “A” location. Select the 'Starting Position' button to choose a different starting position for your robot. Then, select a letter to choose your new starting position.


How to Start, Stop, and Reset a Project

Screenshot of VEXcode VR interface showcasing the VIQC Full Volume (2023-2024) programming environment, featuring block-based coding tools and a virtual robot for educational purposes in STEM learning.

Select the 'Start' button to start a project.

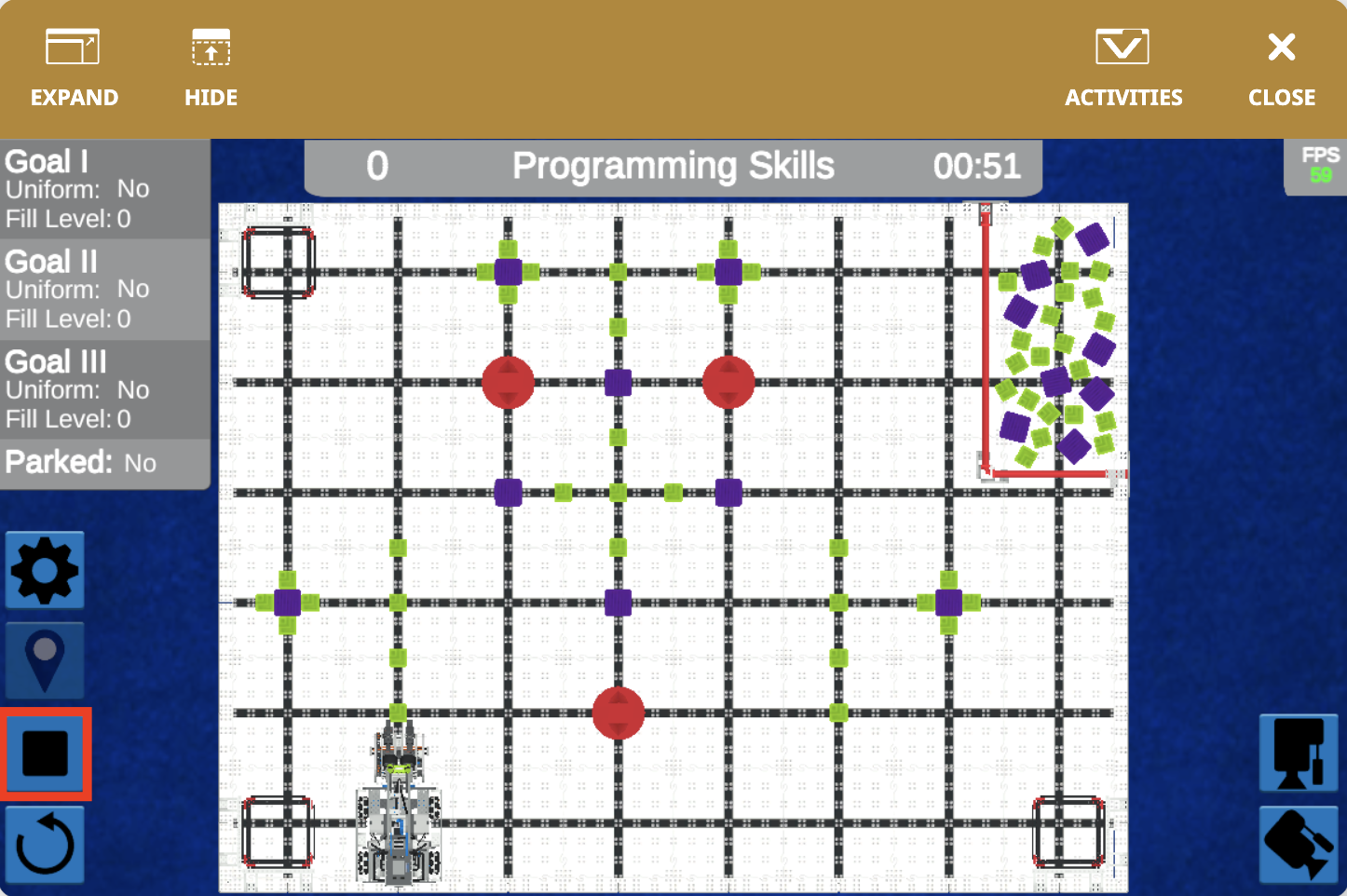

This button will change to a 'Stop' button when a project is actively running.

Diagram illustrating the VIQC Full Volume specifications for the 2023-2024 season in VEXcode VR, showcasing dimensions and layout for optimal robot design and programming in a virtual environment.

Selecting the “Stop” button will stop the project and the timer immediately.

The Score Window will appear at this time. See below for more information on the Score Window.

Screenshot of VEXcode VR interface showcasing the VIQC Full Volume (2023-2024) programming environment, featuring block-based and text-based coding options for virtual robotics education.

Select the “Reset” button to reset the timer, point value, and Field.


How to View Your Score and the Timer

Diagram illustrating the VIQC Full Volume for the 2023-2024 season in VEXcode VR, showcasing the virtual robot's programming environment and coding interface designed for educational purposes in STEM learning.

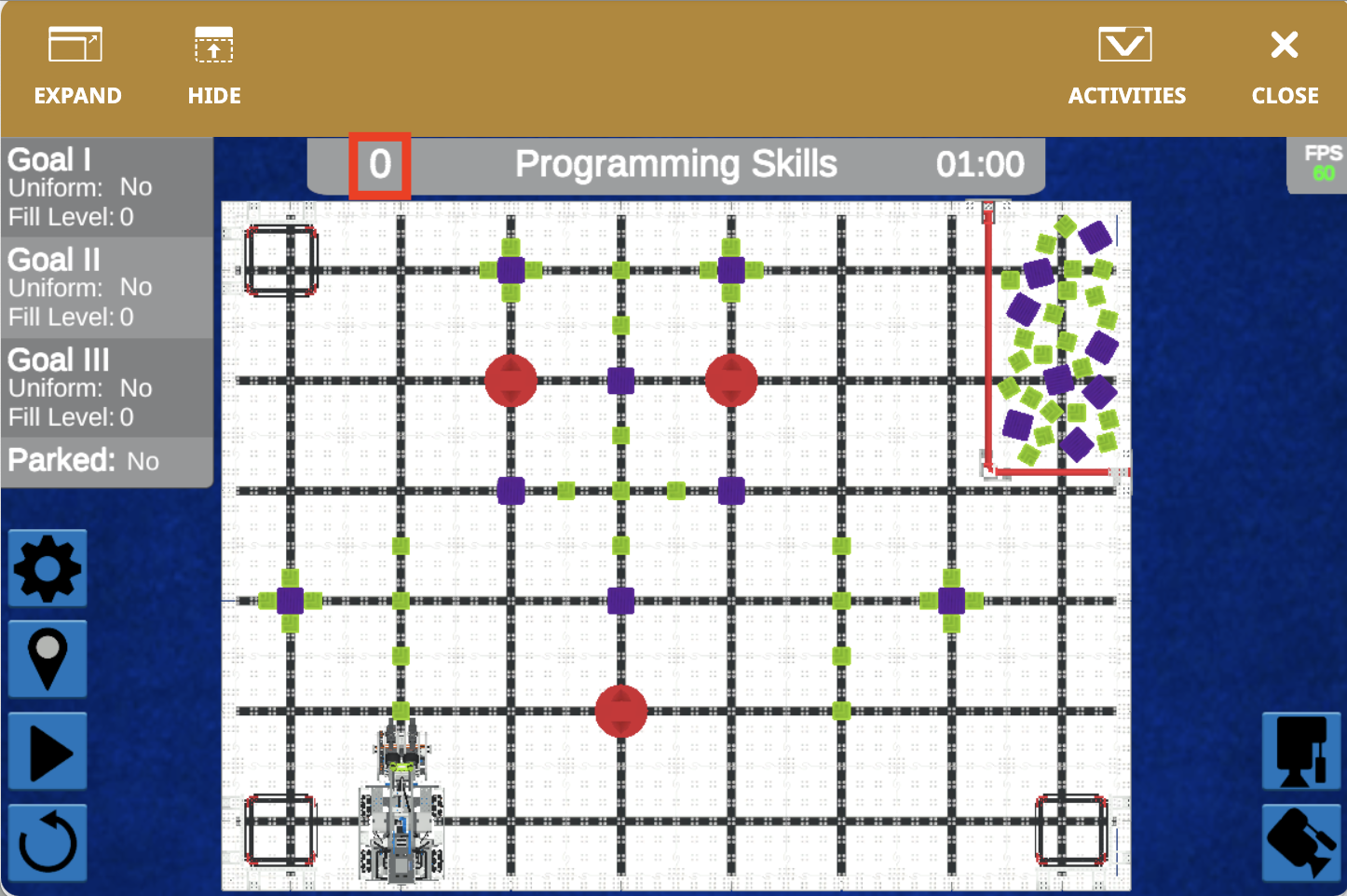

Your score can be seen above the Field on the left side. This will be updated in real-time after the project is started.

Diagram illustrating the VIQC Full Volume for the 2023-2024 season in VEXcode VR, showcasing the layout and dimensions for programming virtual robots in a competitive robotics environment.

The timer is located above the Field on the right side.

The timer begins when a project is started and counts down from 1:00. The timer will count down until 'Stop' is selected, the [Stop project] block is used in the project, or the timer reaches 0 seconds.


How to Retry and Close the Score Window

Screenshot of VEXcode VR interface displaying the VIQC Full Volume (2023-2024) programming environment, featuring a block-based coding layout for users to learn coding concepts through virtual robot simulations.

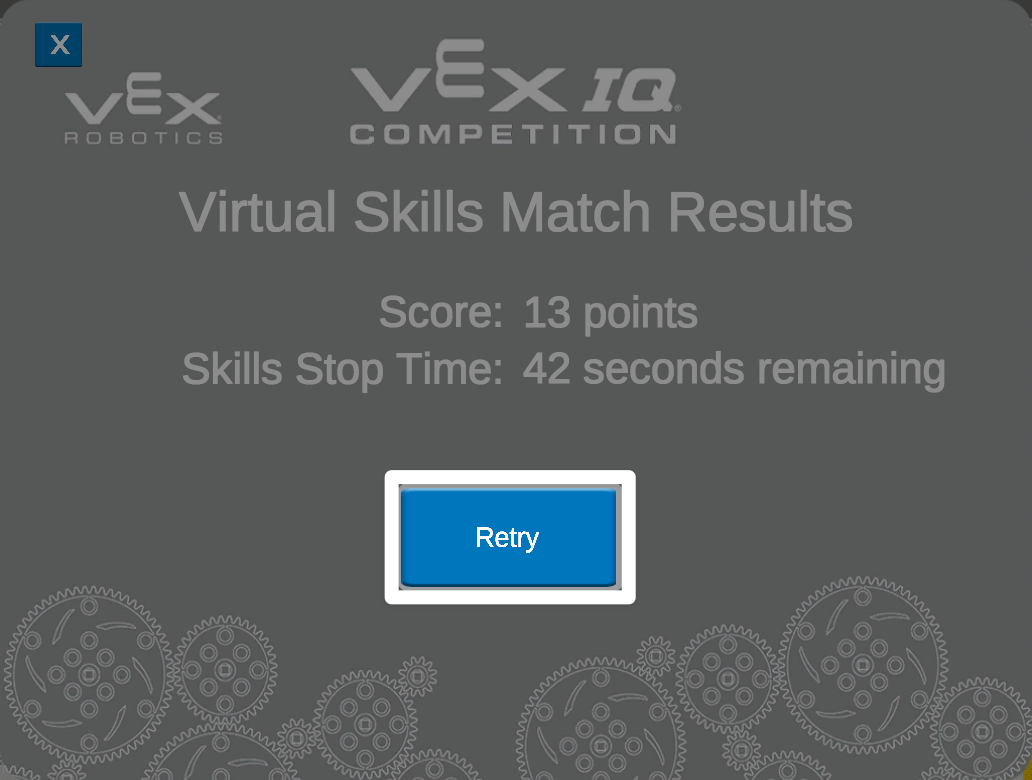

Select the 'Retry' button to return to the Field and reset the timer and score.

Screenshot of VEXcode VR interface showcasing the VIQC Full Volume (2023-2024) programming environment, featuring a block-based coding layout designed for teaching coding concepts and robotics principles.

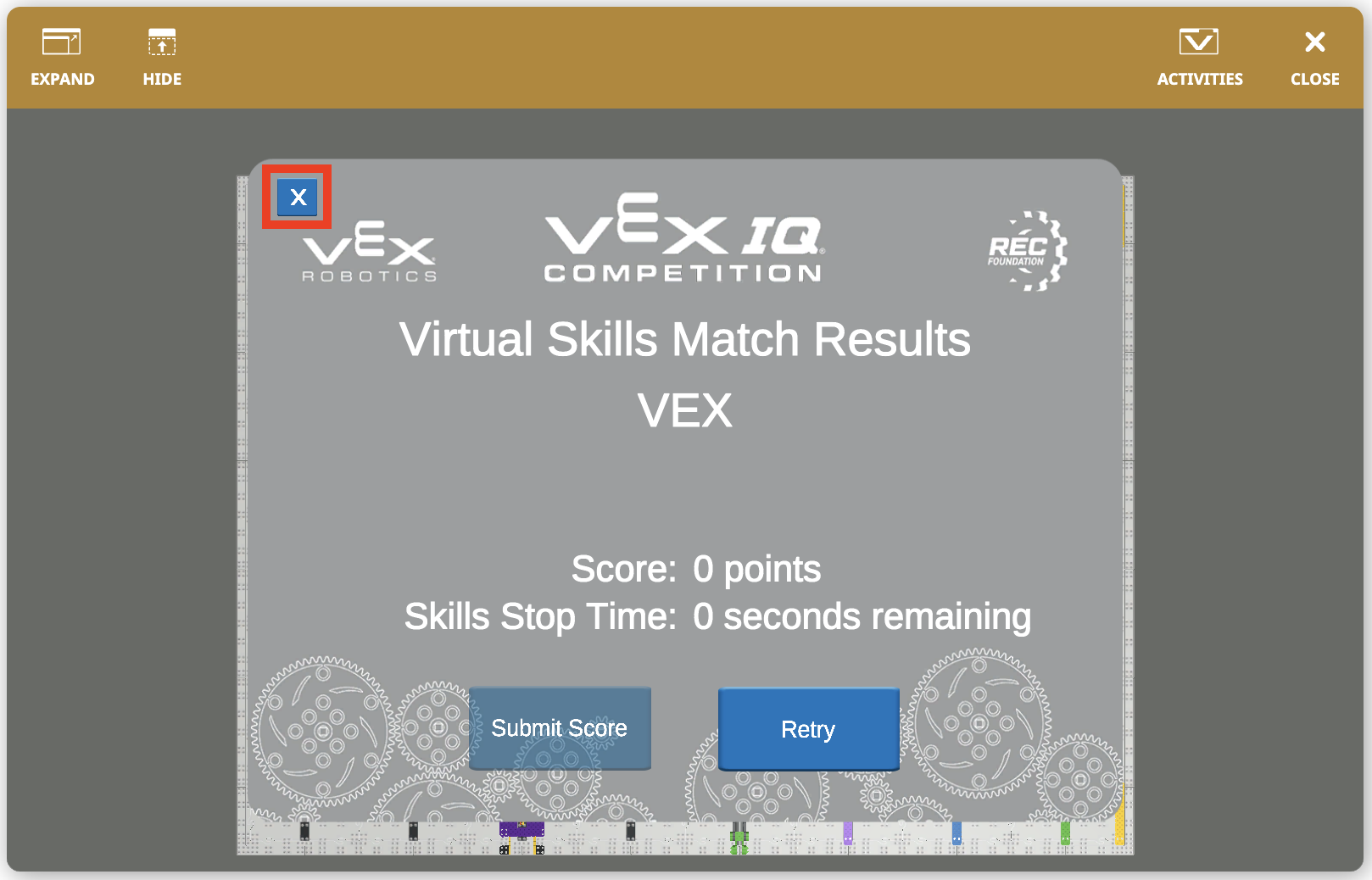

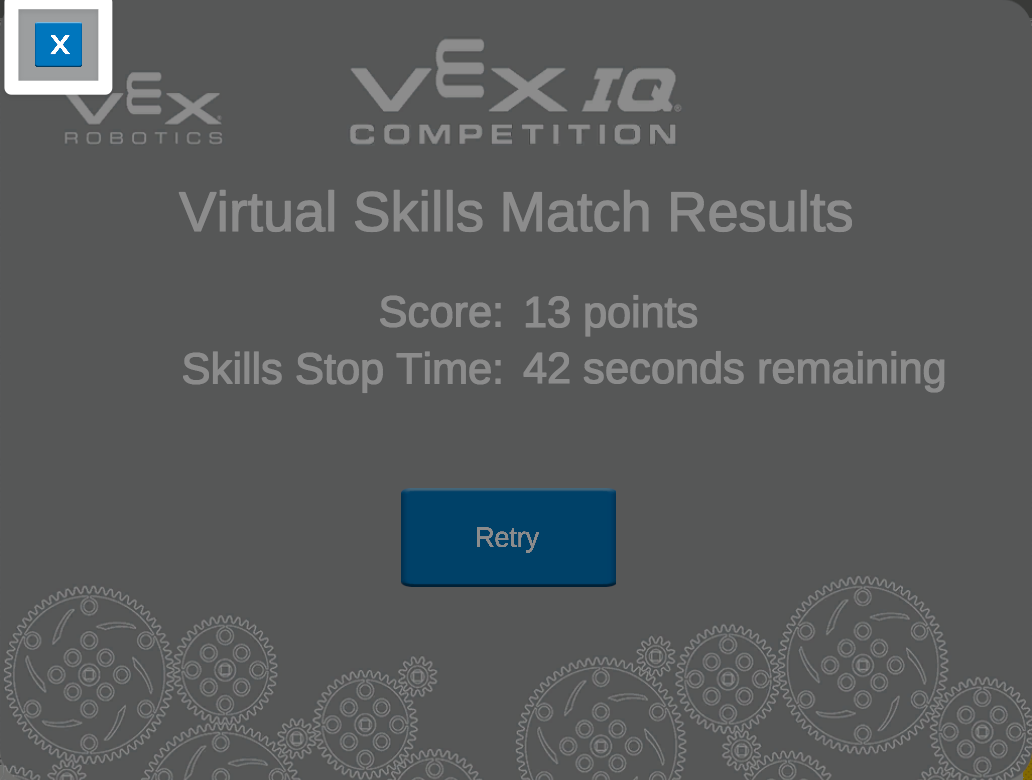

Select the “X” in the top-left corner to close the Score Window and return to the Field.

This will not reset the Field, timer, or score. It will return to the Field exactly as it was at the moment the project was stopped.


How to Expand and Shrink the Playground Window

Diagram illustrating the VIQC Full Volume for the 2023-2024 season in VEXcode VR, showcasing the virtual robot's dimensions and layout for educational programming and robotics learning.

The window begins at a smaller size by default. If you want to expand the window, select the 'Expand' button at the top left corner.

Diagram illustrating the VIQC Full Volume specifications for the 2023-2024 season in VEXcode VR, showcasing dimensions and layout for virtual robot programming and educational applications in STEM.

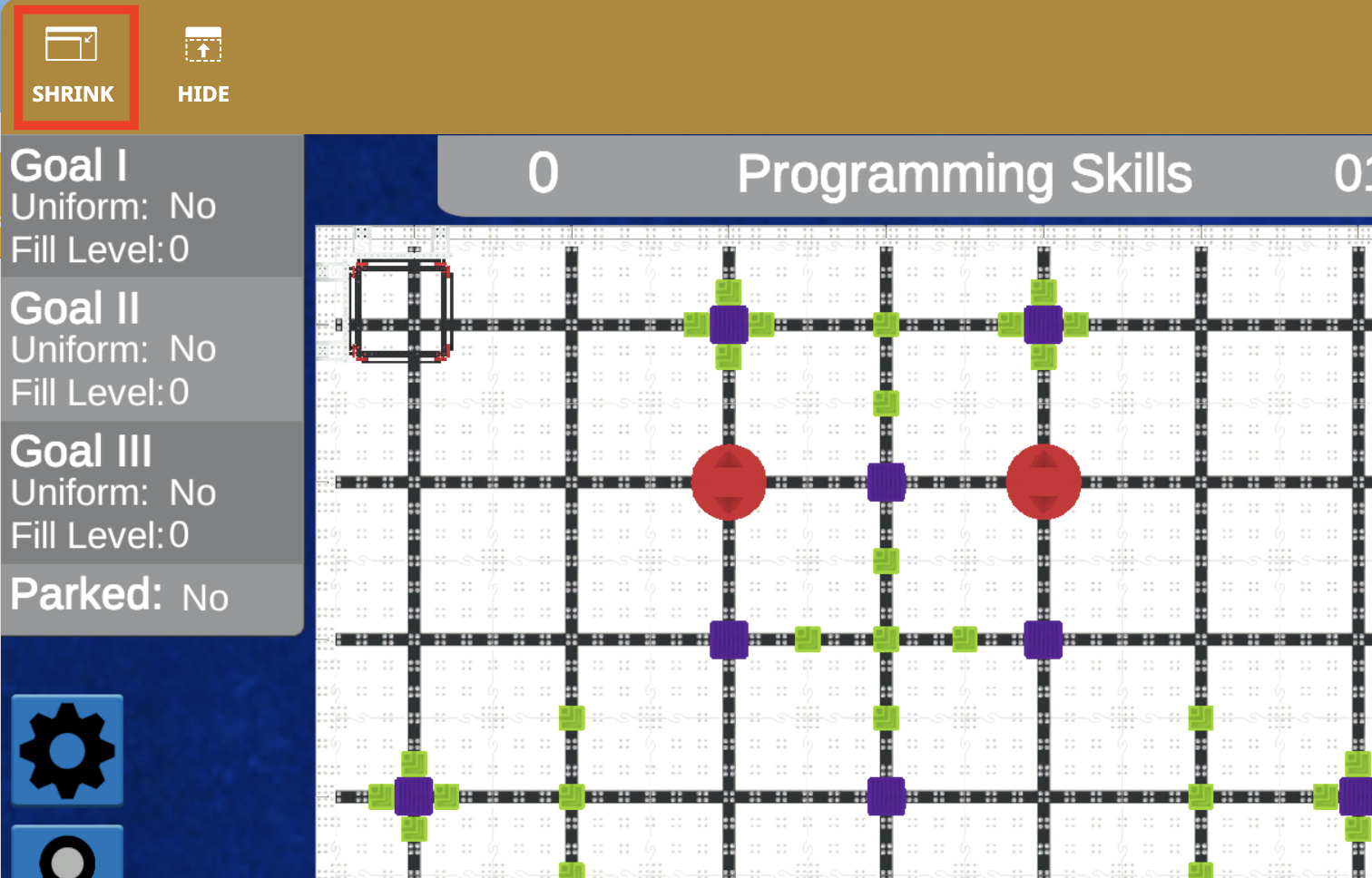

Select the 'Shrink' button in the top-left corner to return the window to the default size.


How to Hide and Show the Playground Window

Diagram illustrating the VIQC Full Volume for the 2023-2024 season in VEXcode VR, showcasing the layout and dimensions for programming virtual robots in a simulated environment.

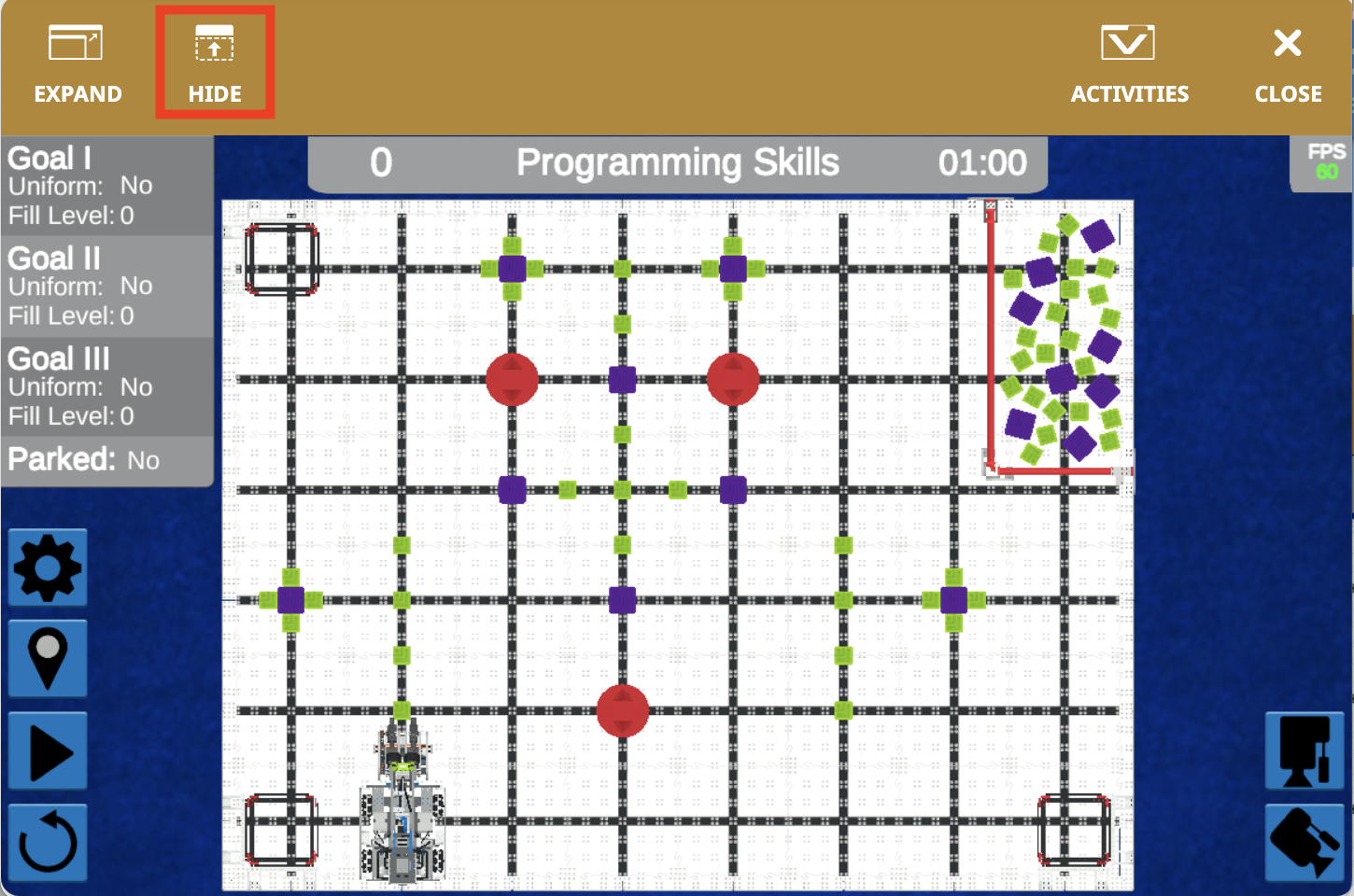

Select the 'Hide' button to collapse the Playground Window. This will still keep the blue toolbar at the top of the window visible.

VEXcode VR interface showcasing the VIQC Full Volume (2023-2024) programming environment, featuring a block-based coding layout designed for learning coding concepts with a virtual robot.

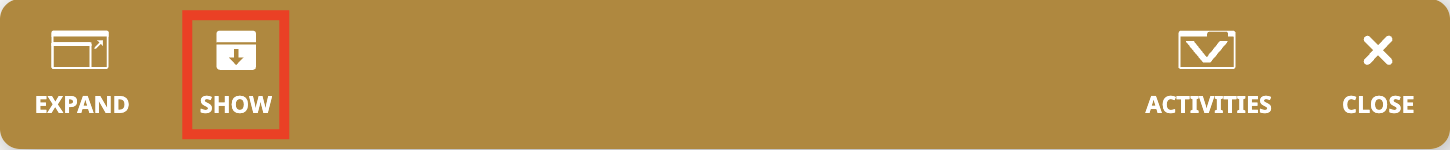

To view the full window again, select the 'Show' button.


How to Select Different Camera Views

Diagram illustrating the VIQC Full Volume for the 2023-2024 season in VEXcode VR, showcasing the virtual robot's dimensions and programming capabilities for educational purposes in STEM learning.

Select the 'Top Camera' button to see an overhead view of the entire Field. This is the default view when you open the VIQRC Full Volume Playground Window.

Screenshot of VEXcode VR interface showcasing the VIQC Full Volume (2023-2024) programming environment, featuring block-based and text-based coding options for learning coding concepts with a virtual robot.

Select the 'Chase Camera' button to see a behind-the-robot view.


How to View Settings

Diagram illustrating the VIQC Full Volume for the 2023-2024 season in VEXcode VR, showcasing the layout and dimensions for programming a virtual robot in a simulated environment.

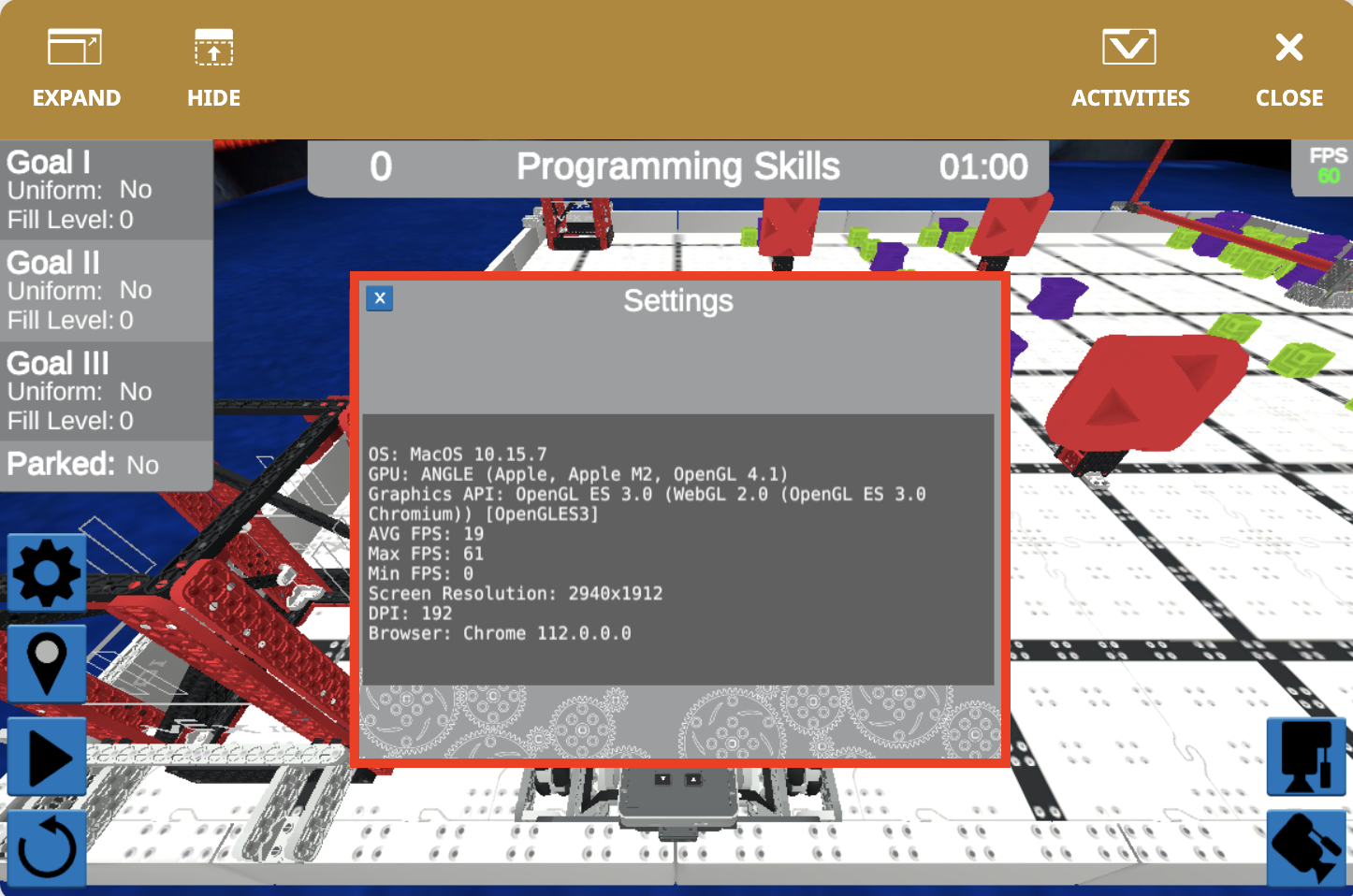

Select the gear icon to open the Settings window.

Diagram illustrating the VIQC Full Volume for the 2023-2024 season in VEXcode VR, showcasing the dimensions and layout for programming virtual robots in an educational context.

Data about your device will be displayed in the Settings window. This can be used to help troubleshoot any performance issues.

For more information, help, and tips, check out the many resources at VEX Professional Development Plus
