In order to charge your V5 Controller, follow along with the steps in this article.

V5 Controller image showing design features and layout, including buttons and joystick positions, illustrating the functionality of the V5 robotics controller.

First, ensure you have all of the materials you need to get started:

A micro-usb cable
A V5 Controller
A power source (such as a charging cube connected to an outlet or a computer)

How to Charge a V5 Controller

VEX V5 Controller with buttons, joystick, and display screen, showcasing its design and features for robotics applications.

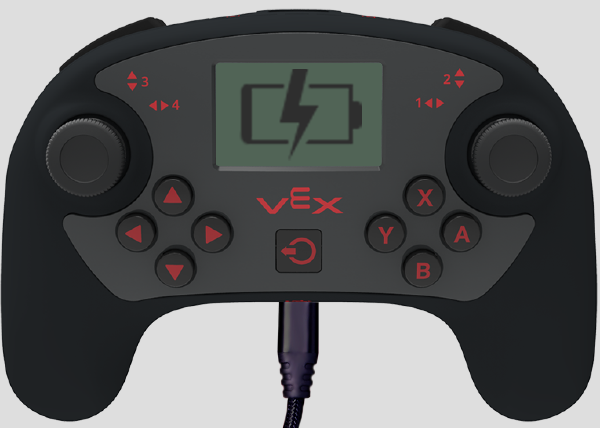

Connect the micro-usb cable to the Controller’s charge port located underneath the power button.

The micro-usb cable must be connected to a power source to charge the Controller.

The battery charge icon on the screen will indicate that the Charger is successfully charging.

Image of the VEX V5 Controller, showcasing its design and features, including buttons, joystick, and ports, used for programming and controlling robotics in educational settings.

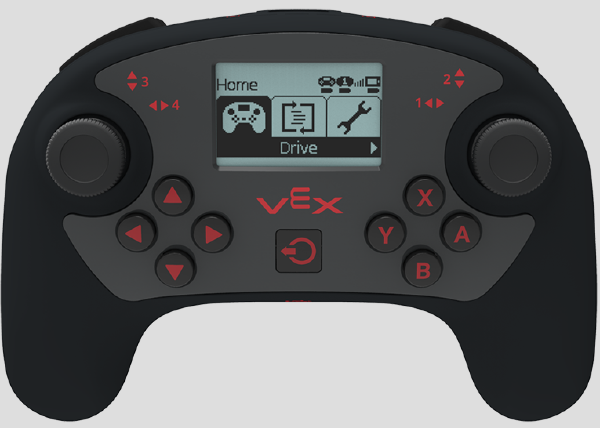

You can turn the Controller on and off by pressing and holding the power button.

Diagram of the V5 controller, illustrating its components and features, including buttons, joystick, and ports, relevant to the V5 category description.

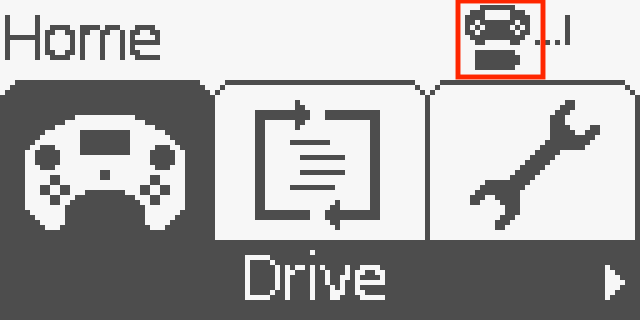

If the Controller is still actively charging, the battery indicator will fluctuate.

Once the Controller is fully charged, the battery icon will be displayed as full.
